Perfect for collaborative applications requiring more reach and impressive payload with DOBOT’s signature ease of use and affordability, perfect for a wide variety of applications ranging from machine tending to pick and place tasks and DOBOT CR series boasts a broad ecosystem of compatible components and impressively intuitive programming.
Plug and play design allows a quick deployment using different accessories from ecosystem, program with graphical interface, scripting using smartphones, tablets and computers, or program directly with drag-to-teach and complete installation in 20 minutes, up and running in an hour.
The CR Series has 22 safety features built-in and is ISO 13849 and TS15066 certified with equipped with sensors offering 5 adjustable levels of collision detection, it can adapt to a variety of application scenarios and optional safe skin senses unexpected objects that come within 15 cm, actively enhances the safety.
All-perceptive AI control technology combines vision, force, voice controls into one and trajectory tracking and portable learning algorithm make imitating human hand motions possible.

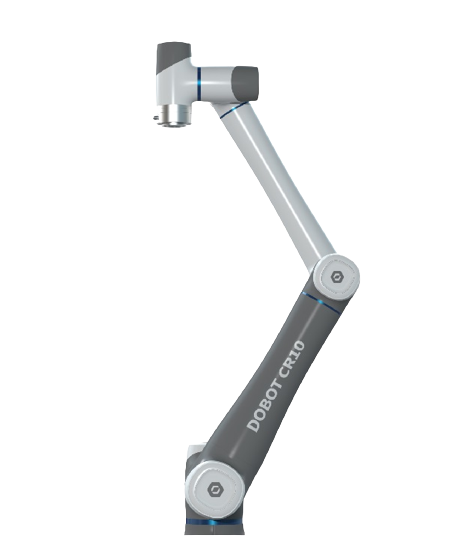

CR10 Robotic Arm:Fits Rich Industrial Taste The versatile easy-to-use cobot can improve efficiency of manufacturing lines by providing a wide range of features perfect for various applications,including palletizing, loading and unloading, etc.
Improve the flexibility of your product line and production efficiency by using an easy to deploy CR collaborative robot within 20 minutes to set up and quickly put into application within 1 hour to perform.
Our software and arithmetic technology makes the operation and management of the CR collaborative robot series intelligent and straightforward. It can accurately emulate human actions by demonstrating the path. No programming skills are required for that.
CR collaborative robot series is recommended not only because of its extensive portfolio of end of arm tooling devices but also because of universal communication interfaces.
CR collaborative robot series is solid and durable to ensure a long life span of 32000 hours of service life.
DOBOT’s exclusive SafeSkin technology is a wearable non-contacting collision detection product for collaborative robots.
.jpg)
Meet the experts and solve your most challenging jobs. Experience a live one-on-one demo tailored for you with our Application Engineers.
Weight
40kg
Maximum Weight
10kg
Reach(mm)
1300mm
Max. Reach(mm)
1525mm
Rated Voltage
DC48V
Maximum Speed of TCP
4m/s
Joint Ranges
J1 / ±360°
J2 / ±360°
J3 / ±160°
J4 / ±360°
J5 / ±360°
J6 / ±360°
Maximum Speed of Joints
J1/J2 - 180°/s
J3/J4/J5/J6 - 180°/s
End-Effector I/O Interface
DI/DO/AI - 2
AO - 0
Communication Interface
Communication
RS485
Controller I/O
DI - 16
DO/DI - 16
AI/AO - 2
ABZ Incremental Encoder / 1
Cable length from body to cabinet / 5m
Repeatability
±0.03mm
IP Rating
IP54
Temperature
0~45°
Power
350W
Materials
Aluminum alloy, ABS plastic
